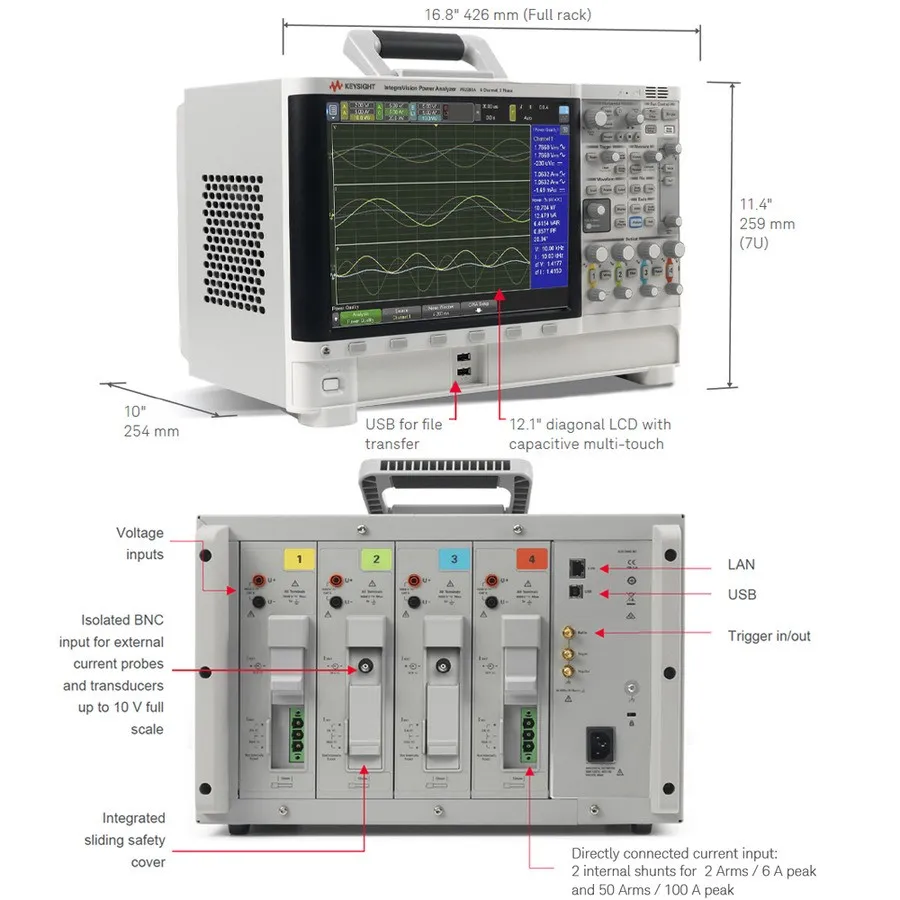

Make: Keysight Technology
Model: PA2203A
- Capabilities
Key Specifications
- 4 channels; each measures voltage, current and power; suitable for 1 and 3-phase AC
- Isolated and floating to 1000 V (Cat II) for easy and safe connections
- Measures AC, DC or AC+DC
- Basic accuracy of 0.05% (at 50/60 Hz)
- 5 MSamples/second at 16 bits on every waveform simultaneously
- Record size: Up to 4M points on every waveform simultaneously
- Timebase: 50 s/div (500 seconds) max; 20 μs/div (200 μs) min
- Voltage: Measures 1000 Vrms / 2000 Vpeak with BW up to 2.5 MHz
- Current: Measures current directly using 2 internal shunts (2 Arms and 50 Arms) with BW up to 100 KHz
- Supports external current probes and transducers of up to 10 V full scale with BW up to 2.5 MHz
- Log data to external USB drive with intervals as fast as 50 ms per reading
- Communicate remotely over standard USB & LAN interfaces
- Applications
- Efficiency and power-consumption testing for AC/DC, DC/AC, DC/DC converters.
- 3-phase system measurement: motor drives, inverters, grid-connected equipment.
- Transient analysis: in-rush current, start-up behaviour, mode changes in power electronics. Renewable energy: solar inverters, energy storage systems (UPS/ESS) testing.
- Electric vehicle (EV), hybrid vehicle (HEV/PHEV) powertrain subsystem testing.
- Power quality and harmonic analysis: voltage/current waveforms, harmonics up to many orders, THD, power factor
- Charges
| S. No. | Experiment Details | Students (UG/PG)/Research Scholars from VIT | UG /PG Students from Academic Institutions (in INR) | Research Scholar from Academic Institution (in INR) | Project Staff from Academic Institution (in INR) | Faculty Members from Academic Institutions (in INR) | Research Scientist from R&D Organizations (in INR) | Industry Personnel from Industry (in INR) |
|---|---|---|---|---|---|---|---|---|
| 1 | Depending on the project setup | 1500/day | 1500/day | 2000/day | 2000/day | 3000/day | 3000/day | 3500/day |
* Charges for per sample in INR(+ applicable GST)
- Location
Room No.: TT044
Power Electronics and Drives Lab, SELECT
Vellore Institute of Technology (VIT), Vellore.
- Contact
Dr. Mrutunjaya Panda,
Assistant Professor
Power Electronics and Drives Lab, SELECT
Vellore Institute of Technology (VIT), Vellore – 632 014, Tamil Nadu, India
Email: mrutunjaya.panda@vit.ac.in
Faculty in charge email id: mrutunjaya.panda@vit.ac.in
Instrument emailID: Yet to receive
