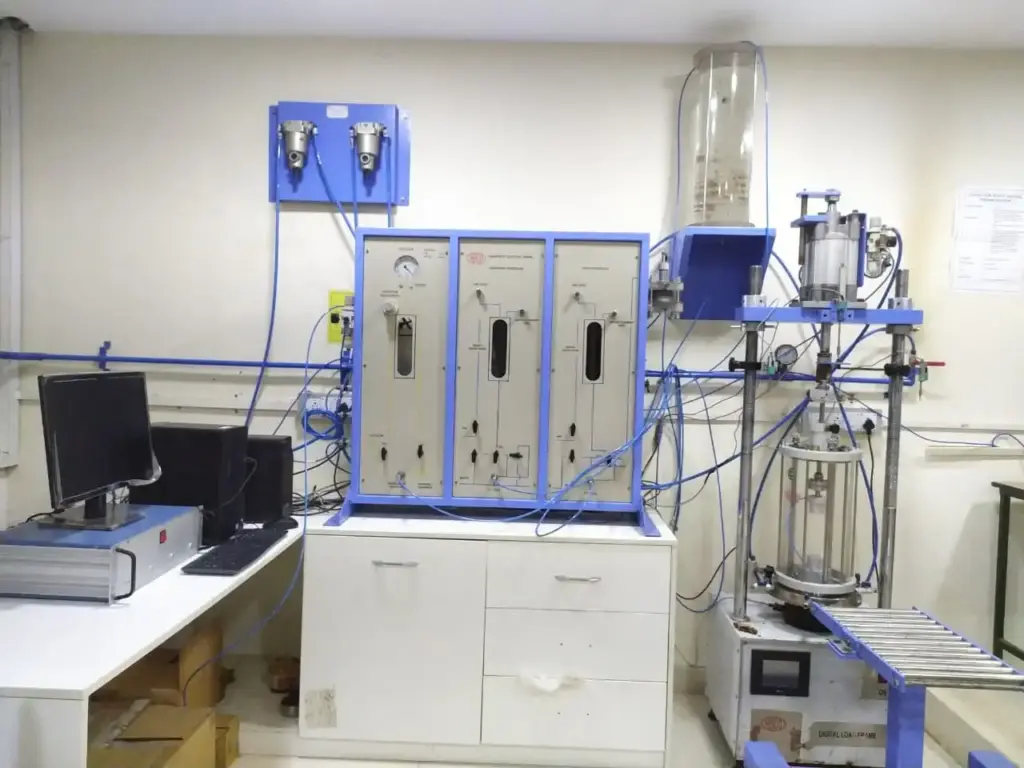

Make: Hydraulic & Engineering
Model: HS 28.630
- Capabilities
- Fully Computer Controlled operation to control Axial Loading,
- Cell Pressure & Back pressure,
- Stress / Strain Controlled Cycling from 0.01 Hz to 10 Hz with 128 data sets per
- Dynamic Loading Range ± 50N to ± 9kN
- Digitally controlled Pressure Controllers for applying Confining and Back Pressure Range 10kPa –1000kPa (Standard)
- Suitable Triaxial cell to accommodate Sample Sizes up to 100mm diameter x 200mm height and a Cell pressure of 1000kPa (Standard)
- Online Plotting of Graphs ( Load v/s Displacement, Load v/s Time, Displacement v/s Time) with real time display of data
- Advanced Analysis Software as per ASTM 3999 & 5311 for Cyclic testing and Routine Static Triaxial testing
- Applications
Saturation, consolidation, UU, CU, CU Bar, CD Triaxial tests with pore pressure and Volume change measurement, Isotropic and Anisotropic tests, Stress & Strain Path control tests, Liquefaction test, Stress Controlled Cyclic Triaxial strength of soils, Strain Controlled Cyclic Triaxial strength of soils, determination of modulus and damping properties of soils, Resilient Modulus of soils etc.
- Charges
| S. No. | Experiment Details | UG /PG Students from Academic Institutions (in INR) | Research Scholar from Academic Institution (in INR) | Project Staff from Academic Institution (in INR) | Faculty Members from Academic Institutions (in INR) | Research Scientist from R&D Organizations (in INR) | Industry Personnel from Industry (in INR) |
|---|---|---|---|---|---|---|---|
| 1 | Static Triaxial Test ? Unconsolidated Undrained (UU Test) | 1000 | 2000 | 2500 | 3000 | 3000 | 4500 |
| 2 | Static Triaxial Test ? 75 | 2000 | 3000 | 4000 | 5000 | 5000 | 7500 |
| 3 | Static Triaxial Test ? Consolidated Drained (CD Test) | 3000 | 4500 | 6000 | 7500 | 7500 | 12000 |
| 4 | Stress Controlled Cyclic Triaxial Test | 4000 | 6000 | 12000 | 15000 | 15000 | 25000 |
| 5 | Strain Controlled Cyclic Triaxial Test | 4000 | 6000 | 12000 | 15000 | 15000 | 25000 |
* Charges for per sample in INR (+ applicable GST)
- Location
Room No.: CTS-G03
- Contact
Dr. J. Visuvasam, Ph.D.
Assistant Professor. Sr.
In-charge – Geotechnical Engineering Laboratory
Structural and Geotechnical Engineering Department
School of Civil Engineering
VIT, Vellore, 632 014, TAMIL NADU, INDIA
Office Phone: +91 – 416 – 220 2176
Mobile: +91 9894264192
Faculty in charge email id: visuvasam.j@vit.ac.in
Instrument email ID: sce.ctatm@vit.ac.in
