Make: Fluke
Model: Ti480 Infrared Camera 9 Hz
- Capabilities
| Key features | |
|---|---|
| IFOV with standard lens (spatial resolution) | 0.93 mRad, D:S 1065:1 |
| Detector resolution | 640 x 480 (307,200 pixels) or 1280 x 960 with Super Resolution |
| Super Resolution | Yes, on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image |
| MultiSharp™ Focus | Yes, focused near and far, throughout the field of view |
| LaserSharp® Auto Focus | Yes, for consistently in-focus images. Every. Single. Time. |
| Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus | Yes |
| Ruggedized touchscreen display | 3.5 inch (landscape) 640 x 480 LCD |
| Rugged, ergonomic design for one-handed use | Yes |
| Digital zoom | 2x and 4x |
| Pre-calibrated Lenses | wide angle, 2x telephoto, 4x telephoto and 25 micron/macro |
| Temperature measurement | |
|---|---|
| Temperature measurement range (not calibrated below -10 °C) | ≤ -20 °C to +800 °C (-4 °F to 1472 °F) |
| Accuracy | ±2 °C or 2% (at 25 °C nominal, whichever is greater) |
| Thermal sensitivity (NETD)* | ≤ 0.05 °C at 30 °C target temp (50 mK) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
| Live line marker | Yes |
| General specifications | |
|---|---|
| Frame rate | 9 Hz version |
| Laser pointer | Yes |
| LED light (torch) | Yes |
| Color alarms (temperature alarms) | High temperature, low temperature, and isotherms (within range) |
| Center-point temperature measurement | Yes |
| Spot temperature | Hot and cold spot markers |
| User-definable spot markers | 3 user-definable spot markers |
| Center box | Expandable-contractible measurement box with MIN-MAX-AVG temp display |
| Infrared spectral band | 7.5 μm to 14 μm (long wave) |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity | 10% to 95% non-condensing |
| Safety | IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
| Electromagnetic compatibility | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
| Australian RCM | IEC 61326-1 |
| US FCC | CFR 47, Part 15 Subpart B |
| Vibration | 0.03 g2/Hz (3.8 g), 2.5 g IEC 68-2-6 |
| Shock | 25 g, IEC 68-2-29 |
| Drop | Engineered to withstand 2 meter (6.5 feet) drop with standard lens |
| Size (H x W x L) | 27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in) |
| Weight (battery included) | 1.04 kg (2.3 lb) |
| Enclosure rating | IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
FLK-Ti480 9 Hz

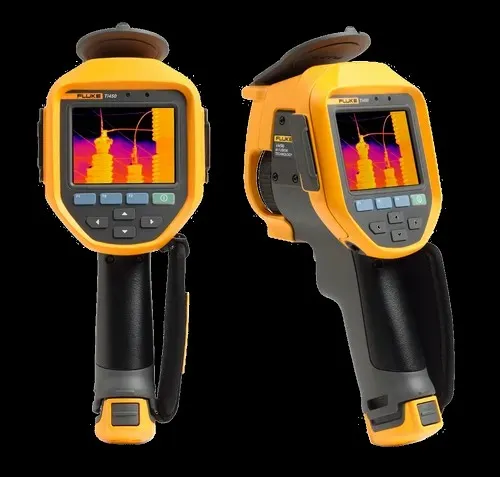

Fluke Ti480 Infrared Camera 9 Hz
Includes:
- Thermal imager with standard infrared lens
- AC power supply and battery pack charger (including universal AC adapters)
- Two, rugged lithium-ion smart battery packs
- USB cable
- HDMI video cable
- 4 GB micro-SD card
- Rugged, hard carrying case
- Soft transport bag
- Adjustable hand strap
- Available by free download Fluke Connect® SmartView® desktop software and user’s manual
- High-Resolution Thermal Imaging – 640 × 480 pixel infrared detector (Super Resolution up to 1280 × 960 pixels for detailed temperature mapping).
- Wide Temperature Range – Measures temperatures typically from –20 °C to +1000 °C, suitable for electrical, mechanical, and industrial applications.
- High Thermal Sensitivity – Detects minute temperature differences (≤ 0.05 °C NETD @ 30 °C) for accurate fault diagnosis.
- LaserSharp™ Auto Focus – Built-in laser distance meter ensures fast, precise focusing on targets.
- Interchangeable Smart Lenses – Supports telephoto, wide-angle, and macro lenses without recalibration for versatile inspection needs.
- Wireless Connectivity (Fluke Connect™) – Enables real-time image sharing, cloud storage, and asset tracking via Wi-Fi or Bluetooth.
- Rugged Industrial Design – IP54-rated for dust and water resistance; drop-tested to 2 m for field durability.
- Voice, Text, and IR-Photo Notes – Allows on-site documentation and tagging of inspection data directly on the camera.
- Radiometric Video Recording – Captures full-temperature data video sequences for dynamic thermal analysis.
- Advanced Image Processing – Features like MultiSharp Focus, IR-Fusion™ (blend of visual + IR image), and adjustable color palettes for clearer analysis.
- Applications
- Electrical Inspection – Detect overheating in switchgear, cables, and connections.
- Mechanical Equipment Monitoring – Identify friction or misalignment in motors, pumps, and bearings.
- Transformer & Substation Maintenance – Spot hot spots in windings and terminals.
- Building Energy Audits – Locate insulation losses, air leaks, and heat bridges.
- HVAC System Diagnostics – Check air ducts, coils, and vents for temperature imbalance.
- Research & Development – Analyse thermal behaviour of materials, electronics, and EV components.
- Battery & EV Testing – Evaluate battery pack heating, inverter efficiency, and cooling performance.
- Manufacturing Quality Control – Inspect welds, castings, and PCBs for uniform heating and defects.
- Solar Panel Inspection – Detect faulty cells or poor connections through temperature mapping.
- Fire Safety & Risk Prevention – Identify overheated surfaces or potential ignition sources in industrial areas.
