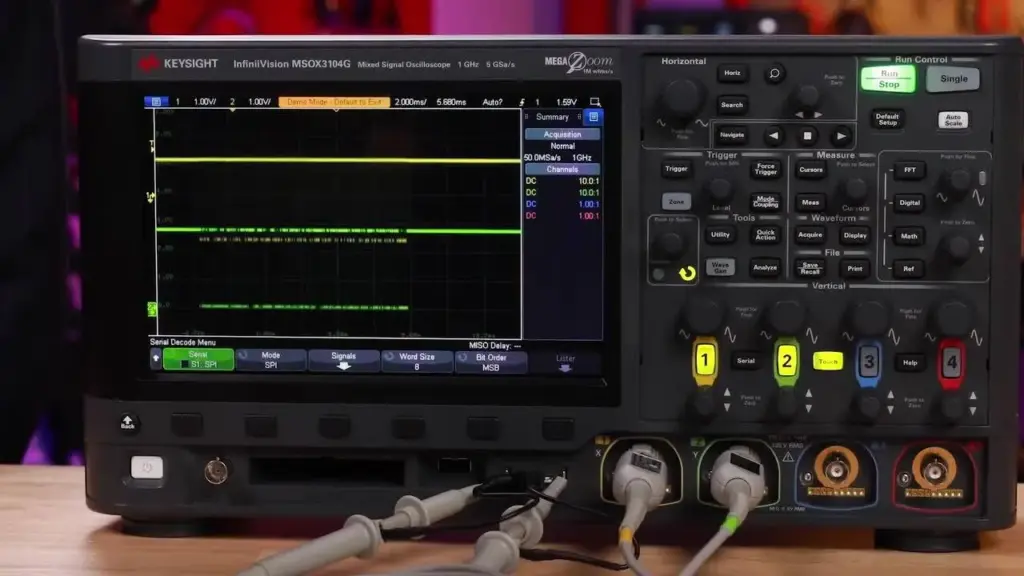

Make: Keysight Technology
Model: MSOX3014G
- Capabilities
Key Specifications
- Bandwidth: 100 MHz (typical model)
- Analog channels: 4
- Digital channels: 16 (for MSO version)
- Maximum sample rate: up to 4 GSa/s (depending on configuration)
- Memory depth: up to 4 Mpts (optional)
- Waveform update rate: up to 1 000 000 waveforms
- Display: 8.5-inch capacitive touch screen (WVGA)
- Built-in instruments: Function/Arbitrary Waveform Generator (20 MHz), DVM, 8-digit counter/totaliser in many models)
- Upgradability: bandwidth, memory, options (serial protocol decode, digital channels) can be added later.
- Applications
- Analyze both analog and digital signals simultaneously (4 analog + 16 digital).
- Ideal for debugging microcontrollers, FPGAs, and DSP-based systems.
- Measure and analyze switching waveforms, ripple, and transient response.
- Evaluate SMPS, inverters, and motor control circuits.
- Supports decoding and triggering for protocols such as: I²C, SPI, UART/RS232, CAN, LIN, I²S, and USB 2.0.
- Great for automotive and industrial communication testing.
- Correlate digital logic timing with analog signal behavior in real time.
- Perfect for verifying timing relationships between control and feedback loops.
- Widely used in engineering labs for teaching measurement and control concepts.
- Provides an intuitive touchscreen interface and auto-setup functions for easy learning.
- Perform basic frequency domain (FFT) and modulation analysis for low-frequency RF applications.
- Charges
| S. No. | Experiment Details | Students (UG/PG)/Research Scholars from VIT | UG /PG Students from Academic Institutions (in INR) | Research Scholar from Academic Institution (in INR) | Project Staff from Academic Institution (in INR) | Faculty Members from Academic Institutions (in INR) | Research Scientist from R&D Organizations (in INR) | Industry Personnel from Industry (in INR) |
|---|---|---|---|---|---|---|---|---|
| 1 | Depending on the project setup | 1000/day | 1000/day | 1500/day | 1500/day | 2000/day | 2000/day | 2000/day |
* Charges for per sample in INR(+ applicable GST)
- Location
Room No.: TT044
Power Electronics and Drives Lab, SELECT
Vellore Institute of Technology (VIT), Vellore.
- Contact
Dr. Mrutunjaya Panda,
Assistant Professor
Power Electronics and Drives Lab, SELECT
Vellore Institute of Technology (VIT), Vellore – 632 014, Tamil Nadu, India
Email: mrutunjaya.panda@vit.ac.in
Faculty in charge email id: mrutunjaya.panda@vit.ac.in
Instrument emailID: Yet to receive
