Make:NF Corporation Japan

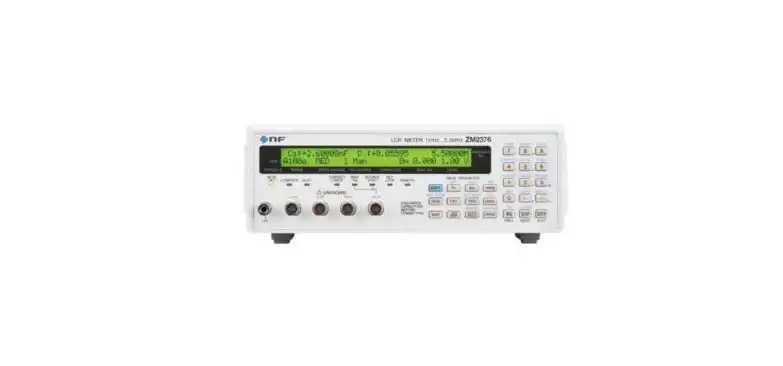

Model:ZM2378
- Capabilities
Frequency range : 1 mHz – 5.5 MHz.
Basic accuracy : 0.08%.
Measurement signal : 10 mVrms – 5 Vrms, 1 µArms – 200 mArms.
DC bias : Internal 0–2.5 V or 0–5.0 V
Measurement time / speed : typical ≈2 ms(1kHz-1MHz) or 10ms(120Hz)
Measured parameters : |Z|, |Y|, L, C, R, G (plus Q, D, θ, X, B, Rs, Rp.
Interfaces / options : USB, RS-232; GPIB / LAN
- Applications
- Capacitance, Inductance, and Resistance (LCR) Measurements
- Precise measurement of passive components under controlled temperature.
- Helps in characterizing behaviour across a wide temperature range.
- Evaluates how dielectric, magnetic, and conductive properties vary with temperature.
- Essential for materials used in harsh or varying environmental conditions
- Charges
| S. No. | Experiment Details | UG /PG Students from Academic Institutions (in INR) | Research Scholar from Academic Institution (in INR) | Project Staff from Academic Institution (in INR) | Faculty Members from Academic Institutions (in INR) | Research Scientist from R&D Organizations (in INR) | Industry Personnel from Industry (in INR) |
|---|---|---|---|---|---|---|---|
| 1 | Measurement at Room Temperature for 4 Parameters | 200 | 500 | 2000 | 2000 | 2000 | 2000 |
| 2 | Temperature Below ?200° C for 4 Parameters | 300 | 600 | 2100 | 2100 | 2100 | 2100 |
| 3 | Temperature Below ?600°C for 4 Parameters | 1000 | 2000 | 4000 | 4000 | 4000 | 4000 |
* Charges for per sample in INR (+ applicable GST)
- Location
Room No.: 505- Technology Tower,
Ceramic composites Laboratory,
Centre for Functional Materials,
Vellore Institute of Technology (VIT), Vellore.
- Contact
Dr.Madhuri W
505- Technology Tower
Ceramic composites Laboratory,
Centre for Functional Materials (CFM),
Vellore Institute of Technology – Vellore Campus,
Thiruvalam Road, Vellore – 632 014, Tamil Nadu, India.
Office Phone: +91 – 416 – 220 2353
Instrument email ID: cfm.lcrmtc@vit.ac.in
