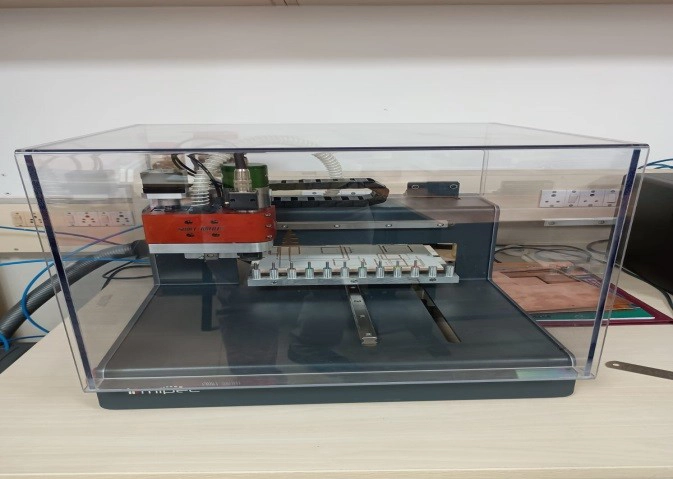

PCB milling machine 4MILL300ATC
- Capabilities
Standard Features:
HF Spindle Motor (60,000 rpm)
Ultrafine resolution (0.4um)
Accuracy (0.05mm)
Suitable for double side PCB’s
Air Compressor required
Dust Extraction Unit
- Specifications
- Max. working Area: 240 x 180 x 30mm
- Milling spindle: software controlled brushless motor with pneumatic clamp, max. 60,000 RPM
- Resolution: 4µm
- Repeatability: ± 0.005 mm
- Tool-changer: 12 positions
- Tool-holder: 3,175mm
- Milling depth adjustment: µm precise depth adjustment
- Drilling speed: up to 120 strokes/min
- Travel speed X/Y: 40mm/s
- X/Y/Z drives: hybride motors
- Machine table: flat milled aluminium table with central T-slot
- Dimensions: W-420 x D-455 x H-435mm
- Power supply: 115/230V, 50-60Hz
- Software: TrackMaker
- Applications
Most commonly used for:
- Copper – substrate Clade patterning
- PCB Routing
- PCB Drilling
- PCB Milling
- Charges
| S.No. | Experiment Details | Students (UG/PG)/Research Scholars from VIT | UG /PG Students from Academic Institutions (in INR) | Research Scholar from Academic Institution (in INR) | Project Staff from Academic Institution (in INR) | Faculty Members from Academic Institutions (in INR) | Research Scientist from R&D Organizations (in INR) | Industry Personnel from Industry (in INR) |
|---|---|---|---|---|---|---|---|---|
| 1 | PCB Fabrication charge for size <= 10 Square Inch | 500 | 600 | 600 | 650 | 650 | 700 | 1000 |
