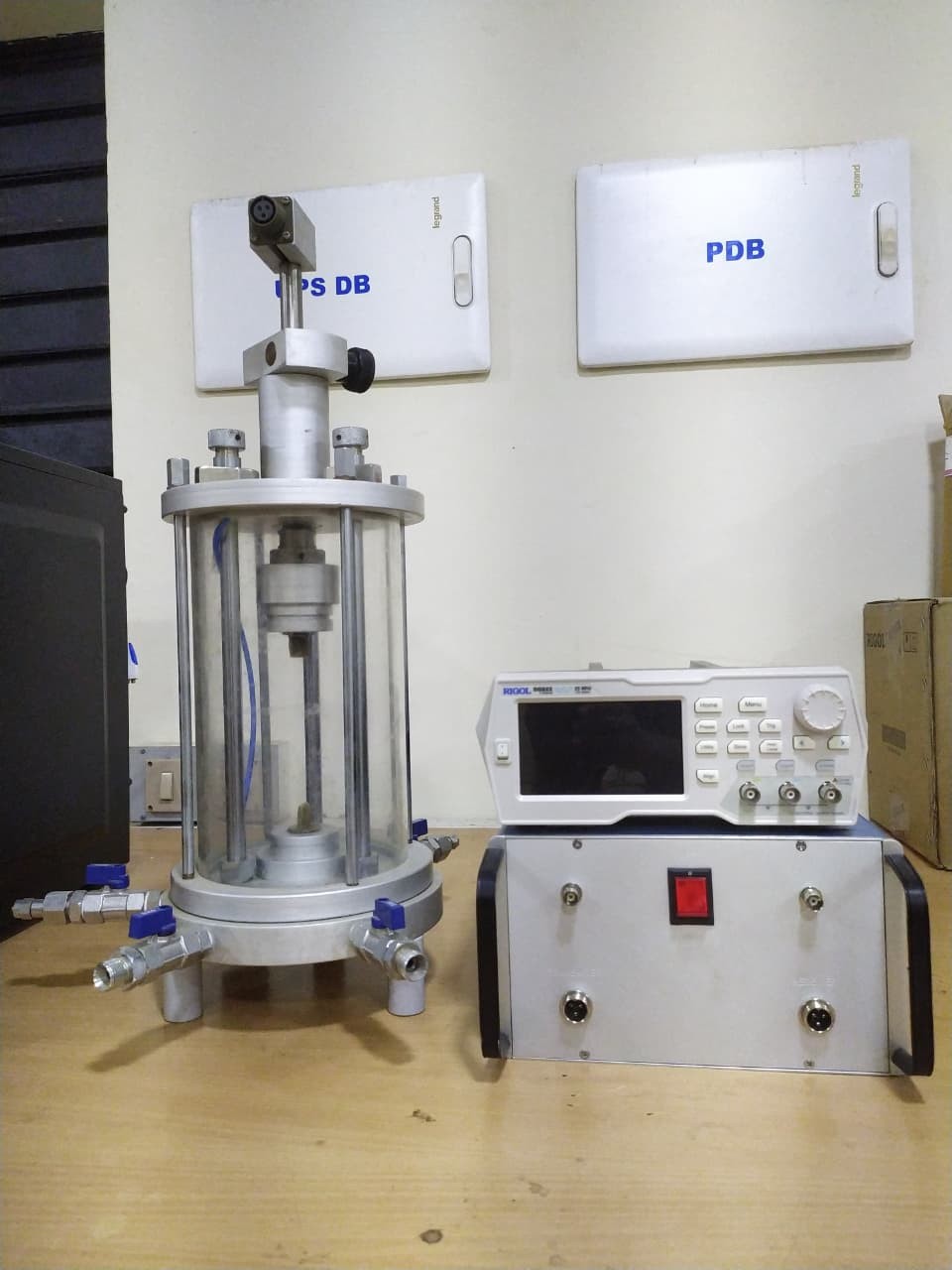

Bender Element Testing Equipment

Home Facilities Bender Element Testing Equipment

Make: Hydraulic & Engineering

Model: HS 28.05 BE

  • Shear wave Velocity (Vs) Measurement
  • Piezoelectric transducers to generate and receive shear waves
  • Measures the time of the travel of the wave through the soil specimen
It generating shear waves and measuring the small strain shear modulus does not change the properties of the specimens, and is thus considered to be a non-destructive test.
Room No.: CTS-G03

Dr. J. Visuvasam, Ph.D.
Assistant Professor. Sr.
In-charge - Geotechnical Engineering Laboratory
Structural and Geotechnical Engineering Department
School of Civil Engineering
VIT, Vellore, 632 014, TAMIL NADU, INDIA

Office Phone: +91 – 416 – 220 2176
Mobile: +91 9894264192
Faculty in charge email id: visuvasam.j@vit.ac.in
Instrument email ID: Yet to receive

S. No. Experiment Details UG /PG Students from Academic Institutions (in INR) Research Scholar from Academic Institution (in INR) Project Staff from Academic Institution (in INR) Faculty Members from Academic Institutions (in INR) Research Scientist from R&D Organizations (in INR) Industry Personnel from Industry (in INR)
1 Bender element test in triaxial cell 3000 6000 7500 9000 9000 18000
2 Bender element test in consolidometer 2000 4000 5000 6000 7500 15000
3 Bender element test in direct shear apparatus 1000 3000 4000 5000 6000 12000

* Charges for per sample in INR (+ applicable GST)
