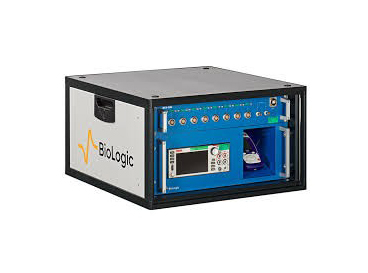

Make: BioLogic
Model: BCS-805
Channels : 8 per module
Voltage Range : 0‑10 V, 40 µV resolution, <±0.3 mV accuracy
Current Capability : ±150 mA max, 5 ranges from 100 mA‑10 µA
Current resolution : Down to 0.2 nA, <0.05 % accuracy
EIS Capability : Optional; 10 kHz‑10 mHz, up to 2.5 V & 60 mA amplitude
Sampling Rate : 2 ms acquisition & time base
Analog I/O : 1 (18‑bit) input & 1 (16‑bit) output per module
Cell Connection : 4-terminal + guard
Size & Weight : 1U, ~5 kg
Power Consumption : ~60 W
Cabinet Compatibility : 6U/12U/24U/38U systems available
Voltage Range : 0‑10 V, 40 µV resolution, <±0.3 mV accuracy
Current Capability : ±150 mA max, 5 ranges from 100 mA‑10 µA
Current resolution : Down to 0.2 nA, <0.05 % accuracy
EIS Capability : Optional; 10 kHz‑10 mHz, up to 2.5 V & 60 mA amplitude
Sampling Rate : 2 ms acquisition & time base
Analog I/O : 1 (18‑bit) input & 1 (16‑bit) output per module
Cell Connection : 4-terminal + guard
Size & Weight : 1U, ~5 kg
Power Consumption : ~60 W
Cabinet Compatibility : 6U/12U/24U/38U systems available
- Battery Performance Evaluation
- Charge/discharge cycling of single cells and battery packs
- Electrochemical Characterization
- Galvanostatic and potentiostatic control for batteries, supercapacitors, and hybrid devices
- Voltage‑current response characterization
- Rate capability testing
- Material and Electrode Research
- Evaluation of new electrode materials (anodes, cathodes)
- Advanced Diagnostics
- Electrochemical impedance spectroscopy (EIS) for kinetic and transport properties
- Safety and Reliability Testing
- Overcharge/overdischarge tolerance
- High precision current/voltage control for abuse testing
- Thermal effect correlation with electrical performance
- Application Areas
- Lithium-ion, Li‑S, Na-ion, solid-state, and other emerging battery chemistries
- Supercapacitors and hybrid capacitors
- Fuel cell single-cell studies
- Industrial R&D, academic research, and quality control
Room No.: 402- Technology Tower,
Device Characterisation Laboratory
Centre for Functional Materials,
Vellore Institute of Technology (VIT), Vellore.
Device Characterisation Laboratory
Centre for Functional Materials,
Vellore Institute of Technology (VIT), Vellore.
Dr.AnKur Rastogi
402 Technology Tower
Device Characterisation Laboratory
Centre for Functional Materials (CFM),
Vellore Institute of Technology - Vellore Campus,
Thiruvalam Road, Vellore – 632 014, Tamil Nadu, India.
Office Phone: +91 – 416 – 220 2353
Instrument email ID: cfm.bts@vit.ac.in
402 Technology Tower
Device Characterisation Laboratory
Centre for Functional Materials (CFM),
Vellore Institute of Technology - Vellore Campus,
Thiruvalam Road, Vellore – 632 014, Tamil Nadu, India.
Office Phone: +91 – 416 – 220 2353
Instrument email ID: cfm.bts@vit.ac.in
| S. No. | Experiment Details | UG /PG Students from Academic Institutions (in INR) | Research Scholar from Academic Institution (in INR) | Project Staff from Academic Institution (in INR) | Faculty Members from Academic Institutions (in INR) | Research Scientist from R&D Organizations (in INR) | Industry Personnel from Industry (in INR) |
|---|---|---|---|---|---|---|---|
| 1 | Battery Test System | 300 | 1000 | 1000 | 1000 | 2500 | 2500 |
* Charges for per sample in INR (+ applicable GST)
