LCR METER WITH TEMPERATURE CONTROLLER

Home Facilities LCR METER WITH TEMPERATURE CONTROLLER

Make: NF Corporation Japan

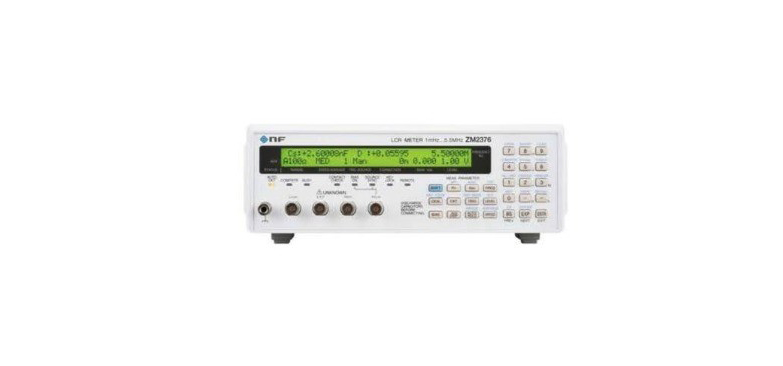

Model: ZM2378

Frequency range : 1 mHz – 5.5 MHz.
Basic accuracy : 0.08%.
Measurement signal : 10 mVrms – 5 Vrms, 1 µArms – 200 mArms.
DC bias : Internal 0–2.5 V or 0–5.0 V
Measurement time / speed : typical ≈2 ms(1kHz-1MHz) or 10ms(120Hz)
Measured parameters : |Z|, |Y|, L, C, R, G (plus Q, D, θ, X, B, Rs, Rp.
Interfaces / options : USB, RS-232; GPIB / LAN
Capacitance, Inductance, and Resistance (LCR) Measurements
  • Precise measurement of passive components under controlled temperature.
  • Helps in characterizing behaviour across a wide temperature range.
Temperature-Dependent Electrical Characterization
  • Evaluates how dielectric, magnetic, and conductive properties vary with temperature.
  • Essential for materials used in harsh or varying environmental conditions
Room No.: 505- Technology Tower,
Ceramic composites Laboratory,
Centre for Functional Materials,
Vellore Institute of Technology (VIT), Vellore.
Dr.Madhuri W
505- Technology Tower
Ceramic composites Laboratory,
Centre for Functional Materials (CFM),
Vellore Institute of Technology - Vellore Campus,
Thiruvalam Road, Vellore – 632 014, Tamil Nadu, India.

Office Phone: +91 – 416 – 220 2353
Instrument email ID: Yet to receive
S. No. Experiment Details UG /PG Students from Academic Institutions (in INR) Research Scholar from Academic Institution (in INR) Project Staff from Academic Institution (in INR) Faculty Members from Academic Institutions (in INR) Research Scientist from R&D Organizations (in INR) Industry Personnel from Industry (in INR)
1 Measurement at Room Temperature for 4 Parameters 200 500 2000 2000 2000 2000
2 Temperature Below ?200° C for 4 Parameters 300 600 2100 2100 2100 2100
3 Temperature Below ?600°C for 4 Parameters 1000 2000 4000 4000 4000 4000

* Charges for per sample in INR (+ applicable GST)
