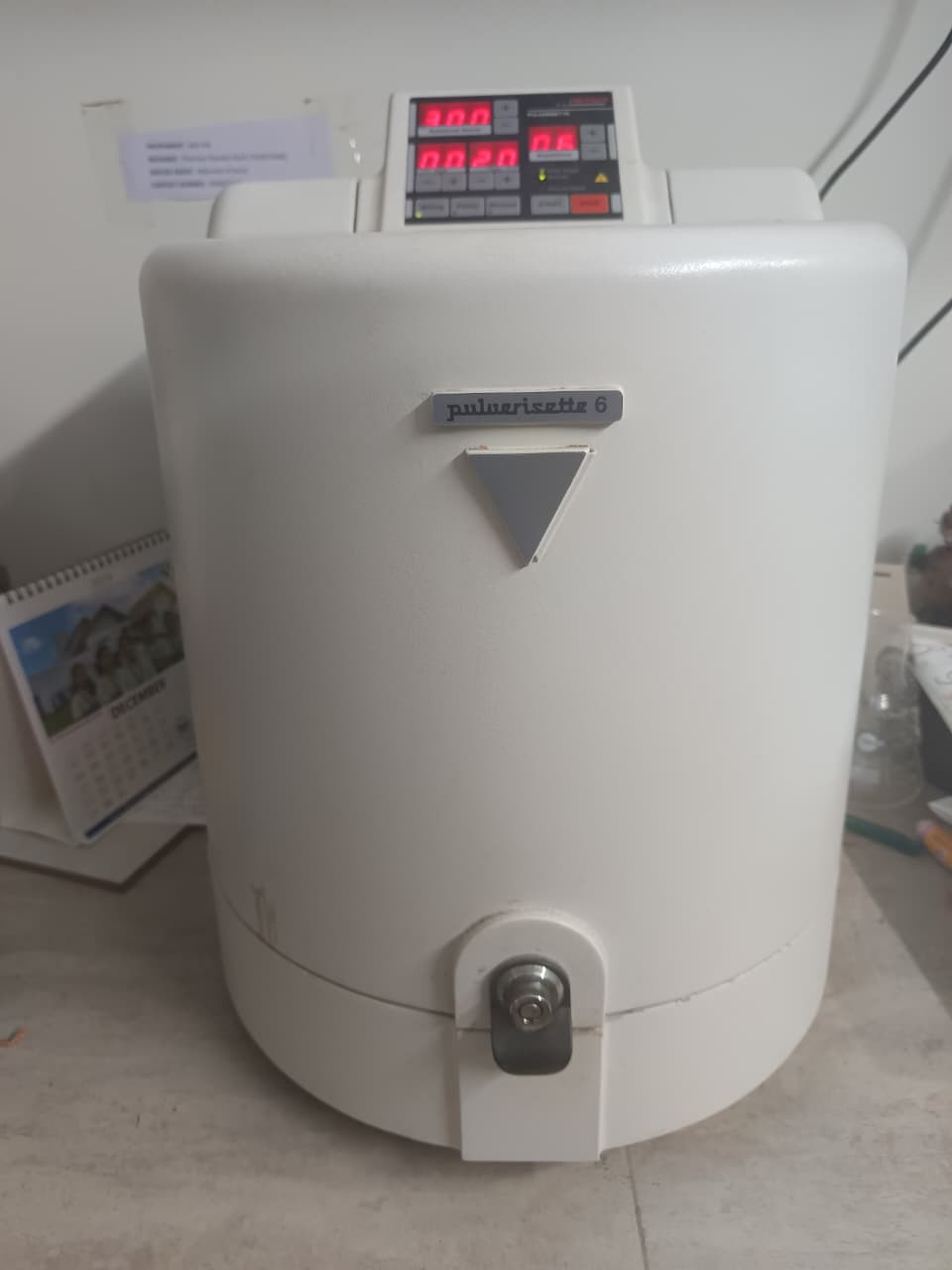

Make: FRITSCH
Model: 03964
Working principle : planetary (impact) mill, single grinding station.
Grinding bowl sizes available: 500, 250, 80, 45, 12 ml (various bowl materials)
Grinding ball diameters : 0.1 mm – 40 mm;
Final fineness can reach :< 1 µm (material-dependent).
Max. Feed size : ≈ 10 mm (depends on material).
Sample / charge quantity : 0.5 – 225 ml.
Electrical requirements : 100–120 / 200–240 V single-phase, 50–60 Hz, ~1000 W
Weight & dimensions (approx.): ~63–67 kg; bench-top 370 × 530 × 500 mm
Sound emission : up to ~85 dB (A) depending on load and media.
Modes : dry / wet grinding
Sample Preparation
- For X-ray fluorescence (XRF), X-ray diffraction (XRD), atomic absorption (AAS), ICP, and other analytical methods.
- Producing homogeneous powder mixtures.
Mechanical Alloying & Material Synthesis
- Solid-state reactions, phase transformations, and amorphization.
- Used in research on nanomaterial’s and advanced alloys.
Particle Size Reduction
- To submicron and manometer range (< 1 µm).
- Suitable for dry or wet grinding.
Room No.: 505- Technology Tower,
Ceramic composites Laboratory,
Centre for Functional Materials,
Vellore Institute of Technology (VIT), Vellore.
Dr.Madhuri W
505- Technology Tower
Ceramic composites Laboratory,
Centre for Functional Materials (CFM),
Vellore Institute of Technology - Vellore Campus,
Thiruvalam Road, Vellore – 632 014, Tamil Nadu, India.
Office Phone: +91 – 416 – 220 2353
Instrument email ID: Yet to receive
S. No.
|
Experiment Details
|
UG /PG Students from Academic Institutions (in INR)
|
Research Scholar from Academic Institution (in INR)
|
Project Staff from Academic Institution (in INR)
|
Faculty Members from Academic Institutions (in INR)
|
Research Scientist from R&D Organizations (in INR)
|
Industry Personnel from Industry (in INR)
|
1
|
PLANETARY MONOMILL ≥ 3hours to 6hours
|
1000
|
1000
|
1000
|
1000
|
2000
|
2000
|
2
|
≥ 6hours to 12hours
|
1500
|
1500
|
1500
|
1500
|
3000
|
3000
|
3
|
For every extra 1 hours
|
300
|
300
|
300
|
300
|
500
|
500
|
* Charges for per sample in INR (+ applicable GST)
