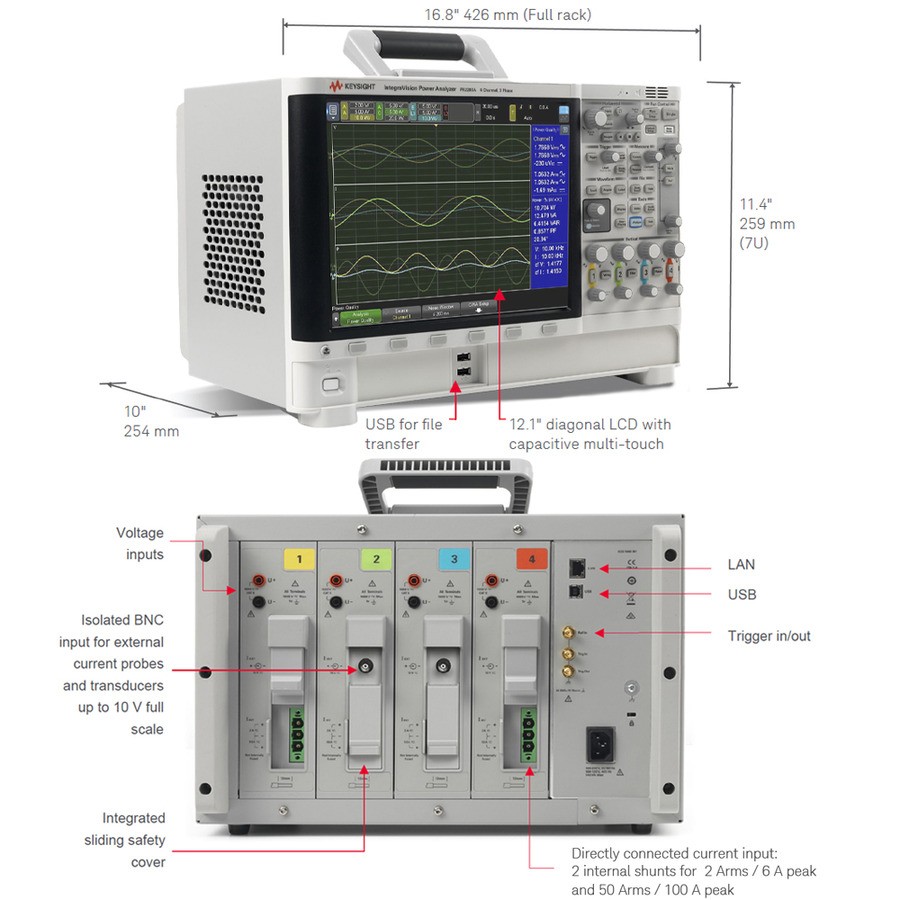

Make: Keysight Technology
Model: PA2203A
Key Specifications
- 4 channels; each measures voltage, current and power; suitable for 1 and 3-phase AC
- Isolated and floating to 1000 V (Cat II) for easy and safe connections
- Measures AC, DC or AC+DC
- Basic accuracy of 0.05% (at 50/60 Hz)
- 5 MSamples/second at 16 bits on every waveform simultaneously
- Record size: Up to 4M points on every waveform simultaneously
- Timebase: 50 s/div (500 seconds) max; 20 μs/div (200 μs) min
- Voltage: Measures 1000 Vrms / 2000 Vpeak with BW up to 2.5 MHz
- Current: Measures current directly using 2 internal shunts (2 Arms and 50 Arms) with BW up to 100 KHz
- Supports external current probes and transducers of up to 10 V full scale with BW up to 2.5 MHz
- Log data to external USB drive with intervals as fast as 50 ms per reading
- Communicate remotely over standard USB & LAN interfaces
- Efficiency and power-consumption testing for AC/DC, DC/AC, DC/DC converters.
- 3-phase system measurement: motor drives, inverters, grid-connected equipment.
- Transient analysis: in-rush current, start-up behaviour, mode changes in power electronics. Renewable energy: solar inverters, energy storage systems (UPS/ESS) testing.
- Electric vehicle (EV), hybrid vehicle (HEV/PHEV) powertrain subsystem testing.
- Power quality and harmonic analysis: voltage/current waveforms, harmonics up to many orders, THD, power factor
Room No.: TT044
Power Electronics and Drives Lab, SELECT
Vellore Institute of Technology (VIT), Vellore.
Power Electronics and Drives Lab, SELECT
Vellore Institute of Technology (VIT), Vellore.
Dr. Mrutunjaya Panda,
Assistant Professor
Power Electronics and Drives Lab, SELECT
Vellore Institute of Technology (VIT), Vellore - 632 014, Tamil Nadu, India
Email: mrutunjaya.panda@vit.ac.in
Faculty in charge email id: mrutunjaya.panda@vit.ac.in
Instrument emailID: Yet to receive
Assistant Professor
Power Electronics and Drives Lab, SELECT
Vellore Institute of Technology (VIT), Vellore - 632 014, Tamil Nadu, India
Email: mrutunjaya.panda@vit.ac.in
Faculty in charge email id: mrutunjaya.panda@vit.ac.in
Instrument emailID: Yet to receive
| S. No. | Experiment Details | Students (UG/PG)/Research Scholars from VIT | UG /PG Students from Academic Institutions (in INR) | Research Scholar from Academic Institution (in INR) | Project Staff from Academic Institution (in INR) | Faculty Members from Academic Institutions (in INR) | Research Scientist from R&D Organizations (in INR) | Industry Personnel from Industry (in INR) |
|---|---|---|---|---|---|---|---|---|
| 1 | Depending on the project setup | 1500/day | 1500/day | 2000/day | 2000/day | 3000/day | 3000/day | 3500/day |
