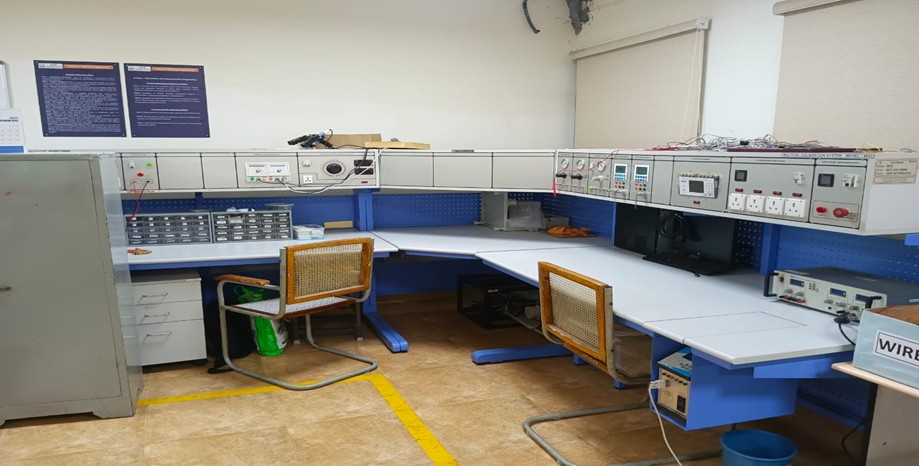

MULTICAL CALIBRATION SYSTEM

Home Facilities MULTICAL CALIBRATION SYSTEM

Make: NAGMAN

Model: 9655

Measurement and Simulation of Electrical & Electronic Signals:
  • DC Voltage (mV/V)
  • DC Current (mA)
  • Resistance (Ohms)
  • Frequency
Temperature Calibration:
  • Calibration of RTDs, TCs, temperature switches, indicators, recorders, and controllers.
  • Integration with external temperature sources like dry blocks, oil baths, or black body sources for automatic temperature calibration
  • Range is 50°C to 650°C
Pressure and Vacuum Calibration:
  • Calibration of pressure/differential pressure gauges, indicators, transmitters, switches, and I/P & P/I converters.
  • Measurement and generation of pneumatic and hydraulic pressure (ranges vary depending on the specific pressure modules installed).
  • Features pressure switch testing capability.
  • Supports multiple engineering units (bar, PSI, MPa, etc.)
  • Vacuum calibration with vacuum pump(-1 to 0 Kg/cm2)
Physical Features:
  • Modular design allows for custom configuration (bench-top, workstation, or portable mobile units).
  • High accuracy, resolution, and stability for reliable measurements.
  • User-friendly interface, often with a large graphic or color touchscreen display.
This system serves as a comprehensive solution for centralised or distributed calibration labs in a wide range of industries.
Room No.: TT514
Measurement and Instrumentation Lab
Dr. M Praveen Kumar
Associate Professor
Dept. Control and Automation
Vellore Institute of Technology (VIT), Vellore - 632 014, Tamil Nadu, India
Email: praveen.m@vit.ac.in
Office Phone: +91 – 416 – 220 2731
Mobile: +91 9791435394
Faculty in charge email id: praveen.m@vit.ac.in
Instrument email ID: Yet to receive
S. No. Experiment Details Students (UG/PG)/Research Scholars from VIT UG /PG Students from Academic Institutions (in INR) Research Scholar from Academic Institution (in INR) Project Staff from Academic Institution (in INR) Faculty Members from Academic Institutions (in INR) Research Scientist from R&D Organizations (in INR) Industry Personnel from Industry (in INR)
1 Temperature Calibration 2000 4000 4000 4000 4000 4000 4000
2 Pressure and Vacuum Calibration 2000 4000 4000 4000 4000 4000 4000

* Charges for per sample in INR (+ applicable GST)
