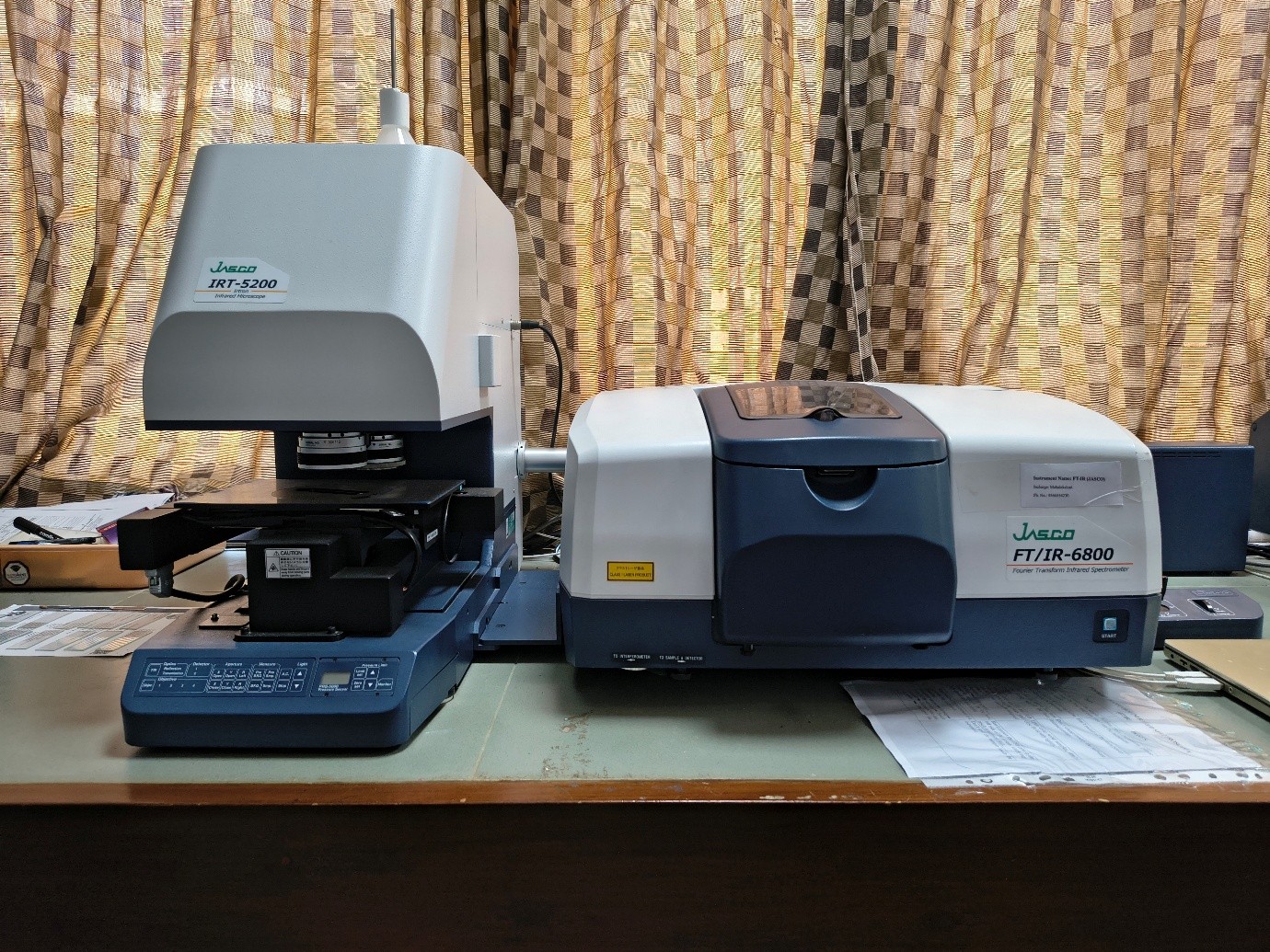

Make: Jasco
Model: IRT 5200
- Measurement Modes: Transmission, Reflection and ATR (Attenuated Total Reflectance).
- Detector: High-sensitivity Mid-Band MCT detector (standard)
- Spectral Range: 7800–600 cm⁻¹
- Microscopic Observation: High-resolution CMOS camera with optical zoom for simultaneous sample observation and infrared spectral acquisition
- Objectives: Motorized multi-position objective turret with 16x
- IQ Mapping & Imaging Capability and multi-point analysis without moving the sample stage
- ATR Capability: View-Through ATR technology enabling simultaneous sample observation and ATR measurement.
- Sample size: Particles from 50-500µm
Microscopic FT-IR spectroscopy is commonly used for Identification and characterization of polymers, pharmaceuticals, coatings, fibers, contaminants, forensic samples, biomaterials, and micro-particles
Room No. 417
Pearl Research Park
Centre for Nanobiotechnology.
Dr. John Thomas
Associate Professor-Grade 2
Centre for Nanobiotechnology
VIT, Vellore-632014
Email: cnbt.irmicro@vit.ac.in
Phone: 0416 2204216
