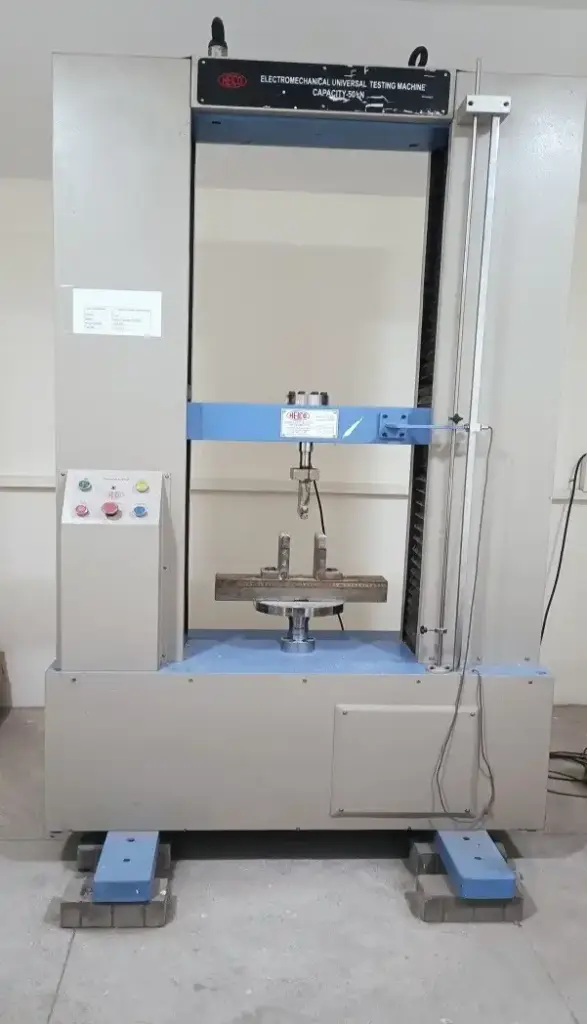

Make: Hydraulic & Engineering Instruments, New Delhi, India (HEICO)
Model: HL 590.25
- Capabilities
- Comply with various International and National standards
- Load and displacement are displayed on the digital display unit or monitor in the respective engineering units.
- Digital display unit has RS 232/ USB connectivity to computer for real time transfer data to computer.
- Load Measuring Accuracy less than +1% of the measured value of Load in the Range from 2% -100% capacity
- Displacement Measuring Accuracy less than +1% of the measured value of displacement
- Online plotting of Load v/s Time, Displacement v/s time, Load v/s Extensometer and Load v/s Displacement graphs along with data display
- Statistical analysis of the test results along with facility to export data to Excel
- Applications
Determination of compressive, flexural, and tensile properties of paste, mortar, and composite specimens, along with precise stress–strain relationship analysis.
- Charges
| S. No. | Experiment Details | Students (UG/PG)/Research Scholars from VIT | UG /PG Students from Academic Institutions (in INR) | Research Scholar from Academic Institution (in INR) | Project Staff from Academic Institution (in INR) | Faculty Members from Academic Institutions (in INR) | Research Scientist from R&D Organizations (in INR) | Industry Personnel from Industry (in INR) |
|---|---|---|---|---|---|---|---|---|
| 1 | Universal Testing Machine- 50kN Capacity – 3 Cube Samples | 100 | 500 | 500 | 1000 | 1000 | 1500 | 1500 |
| 2 | Universal Testing Machine- 50kN Capacity – 3 Prism Samples | 300 | 1000 | 1000 | 2000 | 2000 | 3000 | 3000 |
| 3 | Universal Testing Machine- 50kN Capacity – 3 Irrugular Samples | 500 | 1500 | 1500 | 3000 | 3000 | 5000 | 5000 |
- Location
Heritage Lab, Room No.: G – 09, Near CTS Building
Vellore Institute of Technology (VIT), Vellore.
- Contact
Dr. T.Shanmuga Priya,
Professor
School of Civil Engineering
Vellore Institute of Technology (VIT), Vellore – 632 014, Tamil Nadu, India
Email: shanmugapriya.t@vit.ac.in
Faculty in charge email id: shanmugapriya.t@vit.ac.in
Instrument email ID: sce.utm@vit.ac.in
