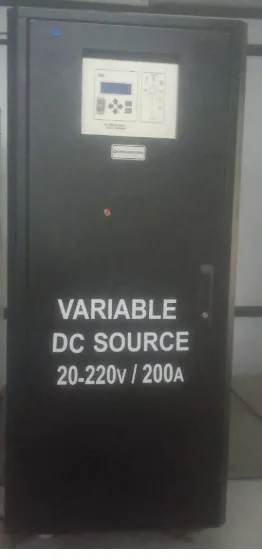

Make: APLAB Limited, Chennai, India
Model: CBHPS20-200V/200A
- Capabilities
- CBHPS: High Power Programmable DC Power Supply series (Aplab’s industrial line).
- 20 – 200V/200A: Output voltage and current range — up to 200 V and 200 A, likely with a 20 kW power capacity.
- It’s often a programmable, high-precision bench or rack-mounted supply used in testing, R&D, and power electronics applications.
- Bidirectional (acts as source and sink/load)
- Programmable via Ethernet, USB, CAN, analog control
| Parameter | Description |
|---|---|
| Output Voltage | 0 – 200 V DC (adjustable) |
| Output Current | 0 – 200 A DC (adjustable) |
| Output Power | Up to 20 kW |
| Control | Manual front-panel knobs or digital/remote (analog input, RS-232/485, Ethernet, USB, CAN, etc.) |
| Cooling | Forced air or liquid cooling depending on model |
| Input Power | Usually 3-phase AC (380–480 V typical) |
| Protection | Overvoltage, overcurrent, over temperature, reverse polarity, etc. |
- Applications
- Battery charging and testing like EV, energy storage
- DC motor testing
- Power electronics R&D
- Electrolysis and plating
- Burn-in and endurance testing
- Industrial automation systems
- Charges
| S. No. | Experiment Details | UG /PG Students from Academic Institutions (in INR) | Research Scholar from Academic Institution (in INR) | Project Staff from Academic Institution (in INR) | Faculty Members from Academic Institutions (in INR) | Research Scientist from R&D Organizations (in INR) | Industry Personnel from Industry (in INR) |
|---|---|---|---|---|---|---|---|
| 1 | Variable DC power supply | 1000 | 1000 | 1000 | 1000 | 2000 | 2000 |
*Charges are per session (+ applicable GST) *
- Location
TT035 – Electrical Machines Laboratory
School of Electrical Engineering (SELECT)
Vellore Institute of Technology (VIT)
Vellore – 632 014, Tamil Nadu, India
- Contact
Dr. V. SANKARDOSS Associate Professor Grade – 1
Electrical Machines Laboratory,
School of Electrical Engineering (SELECT)
Vellore Institute of Technology (VIT)
Vellore – 632 014, Tamil Nadu, India
Email: vsankardoss@vit.ac.in
Phone: 0416 2202491
Consultancy and Training Opportunities
This facility supports industrial consultancy in:
- Variable DC power supply is used for Battery charging and testing
- Real-time DC motor testing
- Customized training workshops on Industrial automation systems
