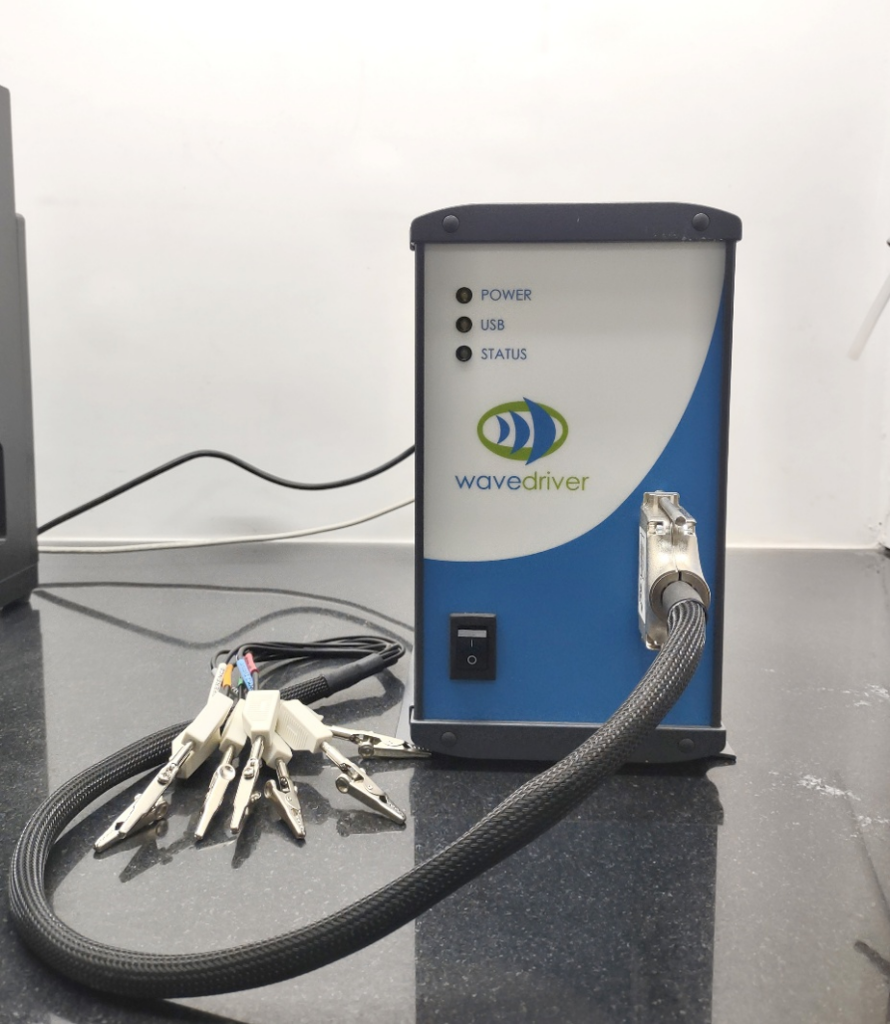

Make: Pine Research Instrumentation, Inc., USA
Model: WD40-BASIC
- Capabilities
- Operating Potential Range: ± 15V, ± 10V, ± 2.5 V
- Current Range: ±1 A
- Operating Temperature Range: 10°C – 40°C
- Applications
WaveDriver 40 DC Bipotentiostat/Galvanostat is capable of performing a wide range of single electrode electrochemical characterizations for several electrochemical reactions.
- General Specifications
- Power Required: 24.0 VDC (±5%), 5.0 A
- Power Supply
➢ Input Requirements: 240 VAC, 1.4 to 0.7 A, 50 to 60 Hz
➢ Output Power: 24 VDC, 5.0 A
➢ Power supply (included) has a C14 type input connector
- Temperature Range: 10℃ to 40℃
- Humidity Range: 80% RH maximum, non-condensing
- Measured Current
- Ranges: ±1 A, ±100 mA, ±10 mA, ±1 mA, ±100 μA, ±10μA, ±1 μA, ±100 nA
- Resolution (at each range): 31.3 µA, 3.13 µA, 313 nA, 3 nA, 3.13 nA, 313 pA, 31.3 pA, 3.13 pA
- Autoranging: Yes
- Practical Range: 20 pA to 1.0 A
- Accuracy: ± 0.2% of setting; ±0.05% of range
- Leakage Current: <10 pA at 25ºC
- ADC Input: 16 bits
- Filters: 10 Hz, 30 Hz, 100 Hz, 1 kHz, 10 kHz (2-pole,low pass Bessel filters)
- Software
- AfterMath Data Acquisition Software installed in the laboratory computer to record and analysis the data.
- Standard Electrochemical Methods
- Open Circuit Potential (OCP)
- Constant Potential Electrolysis (BE)
- Constant Current Electrolysis (BE)
- Zero Resistance Ammeter (ZRA)
- Rotating Disk Electrode (RDE)
- Koutecky-Levich Series (KL-RDE)
- Rotating Disk Electrolysis (BE-RDE)
- Rotating Disk Chronopotentiometry (CP-RDE)
- Rotating Disk Ramp Chronopotentiometry (RCP-RDE)
- Cyclic Voltammetry (CV)
- Linear Sweep Voltammetry (LSV)
- Staircase Voltammetry (SCV)
- Chronoamperometry (CA)
- Normal Pulse Voltammetry (NPV)
- Cyclic Step Chronoamperometry (CSCA)
- Differential Pulse Voltammetry (DPV)
- Square-Wave Voltammetry (SWV)
- Double Potential Step Chronoamperometry (DPSCA)
- Rotating Ring-Disk Voltammetry (RRDE)
- Rotating Ring-Disk Koutecky-Levich (KL-RRDE)
- Rotating Ring-Disk Electrolysis (BE-RRDE)
- Linear Polarization Resistance (LPR)
- Rotating Cylinder Voltammetry (RCE)
- Rotating Cylinder Electrolysis (BE-RCE)
- Rotating Cylinder Eisenberg Study (EZB-RCE)
- Rotating Cylinder Polarization Resistance (LPR-RCE)
- Charges
S. No. | Experiment Details | UG /PG Students from Academic Institutions (in INR) | Research Scholar from Academic Institution (in INR) | Project Staff from Academic Institution (in INR) | Faculty Members from Academic Institutions (in INR) | Research Scientist from R&D Organizations (in INR) | Industry Personnel from Industry (in INR) |
1 | Electrochemical Testing charge (<50 mg) – per sample | 2000 | 2500 | 3000 | 3000 | 3500 | 4000 |
- Location
Room No.: CO2 RGTC, Room no. 102
CO2 Research and Green Technologies Centre
Vellore Institute of Technology (VIT), Vellore.
- Contact
Dr. Ramesh Kumar Singh,
Assistant Professor
CO2 Research and Green Technologies Centre (CO2 RGTC)
Vellore Institute of Technology (VIT),
Vellore – 632 014, Tamil Nadu, India
Email: rameshkumar.singh@vit.ac.in
Mobile: +91 9956054815
Faculty in charge email id: rameshkumar.singh@vit.ac.in
