Creep Testing Machine
Make: Applied Test Systems, USA Model: 2330 Capabilities Standard: ASTM E139 Capacity: 12000 lb Temperature: 350 to 1000 o C Test: CreepCreep RuptureStress Rupture Load Accuracy:+/- 0.5 % Applications Used In Aerospace, Marine, Power Plant, Nuclear, Steam Turbine Power Plants Charges User Type Charges (INR) (+ applicable GST) UG /PG Students from Academic Institution 8000 […]
Gas Jet Erosion Tester
Make: DUCOM, Bangalore Model: Gas Jet Erosion Tester Capabilities Erodent Discharge Rate : Range: 30 – 150 M/Sec 1 To 10 gms/Min Erodent : Alumina – 50 micro meter/li> Temperature : Ambient 1000oC/li> Specimen Size : 25 x 25 x 5 mm/li> Impingement angles : 15°, 30°, 45°, 60° 75° & 90° Applications Useful for […]
High Energy ball Mill
Make: Fritsch Model: Fritsch Capabilities Jar Volume: 80 ml No of Jars: 2Nos Speed: 250 rpm. Applications Automotive, Defence, Aerospace Charges Location GDN-G14 (Ground Floor)Centre for Innovative Manufacturing and Research Laboratory Contact Dr. Raja AnnamalaiProfessor & DirectorCentre for Innovative Manufacturing & Research (CIMR),VIT, Vellore, TN – 632 014.Phone: 0416 – 2202234
Residual Stress
Make: Pulstec Industrial Model: Standard µ-X360 Capabilities Collimeter size: standard 0.04inch diameter X-ray tube voltage and current: 30kV; 1mA X-ray tube target:standard: Cr X-ray incident angle:single incident angle method Measurement item: residual stress Measurement target: Iron Measurement time: 90secs Approx. Power supply: AC 100-240V. Applications Automotive, Defence, Aerospace Charges Location GDN-G14 Ground FloorCentre for Innovative […]
Pin On Disc Tribometer – Room Temperature
Make: M/S DUCOM Instruments Model: TR – 20 Capabilities Conforms to the specifications of:ASTM G99 Sliding Speed Range:0.26-10 m/sec Disc Rotation Speed:1200 rpm Maximum Normal Load: upto 100N Frictional Force:0-100 N Wear Measurement Range:4 mm Pin Size:6-8-10 mm diagonal/diameter Disc Size: 80 mm diameter x 8 mm thick Wear Track Diameter:0-90 mm Applications Automotive, Defence, […]
Pin- On Disc Tribometer
Make: DUCOM, Bangalore Model: TR-20-PHM600 Capabilities Temperature : Max 600 C Load : 5 to 200N Frictional Force : 0 to 200 N Rotational Speed : 1200 RPM Pin Diameter : 6,8,10 mm Applications Used for Tool & Die, Aerospace, Composites Charges User Type Charges (INR) (+ applicable GST) UG /PG Students from Academic Institution […]
Gas Pycnometer
Make:Anton Paar Model: Ultrapyc 3000 Capabilities Large cell (135 cm³) Accuracy : 0.02 % Repeatability : 0.01 % Medium cell (50 cm³) Accuracy : 0.02 % Repeatability: 0.01 % Small cell (10 cm³) Accuracy: 0.03 % Repeatability: 0.015 % Preparation mode(s) Flow or pulse Transducer accuracy Better than 0.1 % Pressure reading resolution Digital pressure […]

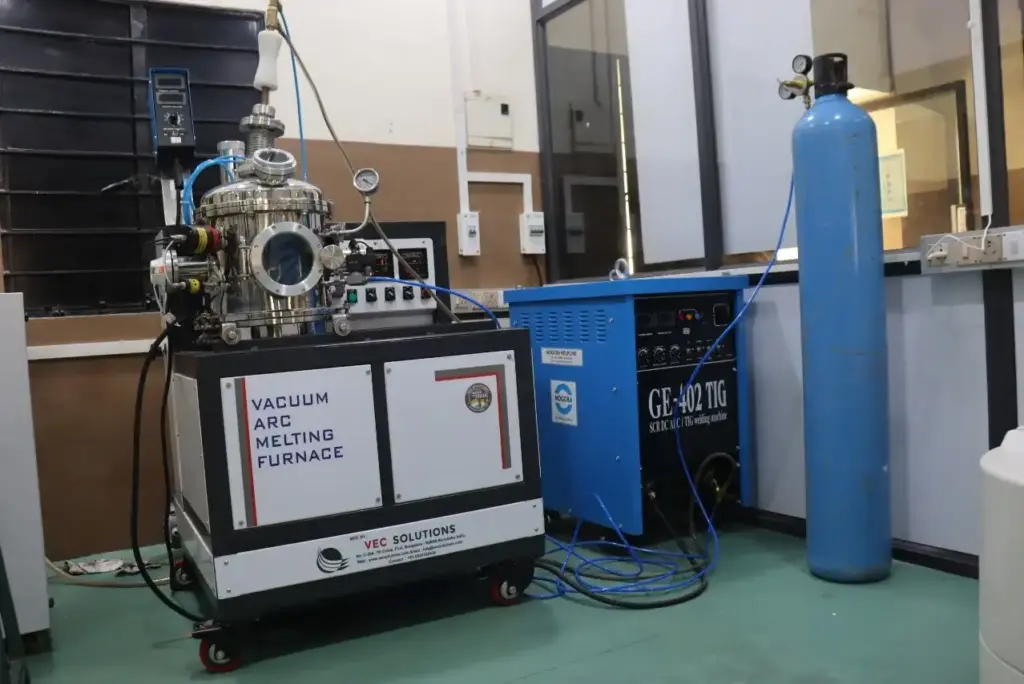

Vacuum Arc Melting Furnace (GE 402 TIG)
Make: VEC Solutions Model: GE 402 TIG Capabilities Amps 400 Amps Volts 230 Button Sample Size 15 ×15 mm Bar sample size 10 × 50 mm Applications Automotive, Defence, Aerospace Charges Internal Users EQUIPMENT_NAME UG /PG Students(in INR) Research Scholar (in INR) Faculty Members/ Project Staff (in INR) Vacuum Arc Melting Furnace (per Melt) 1000 […]
Electrochemical Corrosion Testing Facility
Make: Ivium Model: Vertex One Capabilities Potentiostat Applied potential range: ±10V, 0.08mV res. Applied potential accuracy: -0.2%, or 2mV Current ranges- ±100pA to ±100mA in 10 decades Measured current resolution : 0.003% of current range, minimum 3fA Measured current accuracy : 20pA + 0.025% of FSR Galvanostat Applied current resolution : 0.008% of applied current […]
FE-SEM and EBSD
Make: Thermo Fisher Model: FEI QUANTA 250 FEG Capabilities Capabilities: SEM The ability to examine smaller-area contamination spots at electron accelerating voltages compatible with energy dispersive spectroscopy (EDS). Reduced penetration of low-kinetic-energy electrons probes closer to the immediate material surface To analyse material surfaces at high resolution, including medicine, nanotechnology, materials science, archaeology, and engineering. […]
